Plastic Pipe Extrusion Line , PVC Conduit Pipe Making Machine
Quick detail:
Pipe Material : PVC
Pipe diameter range :16-63mm
Output : 120-180KG
Production speed 1-12m/min
Control: PLC
Motor: Siemens
Certification:CE UL CSA
Voltage : 220v
Power : 60-120KW
Weight : 8.5ton
Screw design : double screw
After-sales Service Provided: Engineers available to service machinery overseas
mould: change molds to produce different pipe products.
Description:
The working process of PVC conduit pipe making machine:
Raw material+additive → mixing → feeding → conical double screw extruder → "one mould four pipes"mould →
vacuum calibration tank → haul-off → cutting machine → stacker
1. Easy operation: The four pipes work independently without effect on each other.
2. Independent vacuum and low power consumption: There is only one vacuum tank of 2.2KW for four pvc pipes.
3. Chipless cutting: high cutting speed and no chip.
4. Mobile printing system: controlled by computer with accurate orientation and only need one printer.
5. The PVC conduit pipe making machine can save place and time.
6. If using SJSZ80/156 extruder, Max. pipe diameter can reach 63mm.
Specifications:
| Main Technical Parameters |
| MODEL | PVCG-110 | PVCG-160 | PVCG-250 | PVCG-315 | PVCG-400 | PVCG-630 |
| MATCHED EXTRUDER | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJG92/188 |
| OD RANGE(mm) | 50-110 | 50-160 | 75- 250 | 110-315 | 200-400 | 315-630 |
| LENGTH OF VACUUM CALIBRATOR TANK(mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| HAUL SPEED(m/min) | 0.6-6 | 0.5-5 | 0.4-4 | 0.3-3 | 0.2-2.5 | 0.2-1.5 |
| INSTALLED POWER(kw) | 67 | 85 | 95 | 125 | 135 | 255 |
| TOTAL LENGTH9(mm) | 17000 | 18000 | 20000 | 20500 | 28000 | 30000 |
Applications:

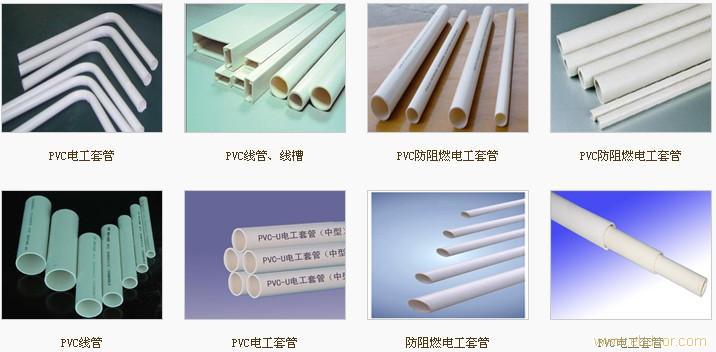

It is mainly used to produce PVC conduit pipe.
Competitive Advantage:
1. good after-service
2. spare parts are free
3. gurantee:one year or according to customer’s requirement.
4. advanced technology and better quality
